Hanfu Making(5) – Pan Collar Aoqun Cutting & Sewing Patterns

This section contains Pan collar Aoqun (盘领袄裙), which can be divided into: Pan collar Da Ao (盘扣大袄), Pan collar Duan Ao (盘扣短袄).

Size range: 155/80A to 175/96A.

Please read the introduction of the topic and how to use this guide in advance.

Introduction

The round collar tunic was not originally a Han dress, but a new type of dress introduced in northern China during the Sixteen Kingdoms period (when the southern part was under the Eastern Jin Dynasty), and became completely popular in ancient China after the Sui and Tang dynasties. However, this costume has evolved over time and has become completely Han Chinese, and as such has become an important and indispensable style in the Han clothing system.

The Ming system Pan collar is a kind of round collar, evolved from the Sui and Tang round collar, generally straight cloth is first folded in half, then ironed into shape, along the inner circle with thread sewn tightly, so that the collar edge curved into a round shape, and the end of the collar edge nailed with buttons for fixed.

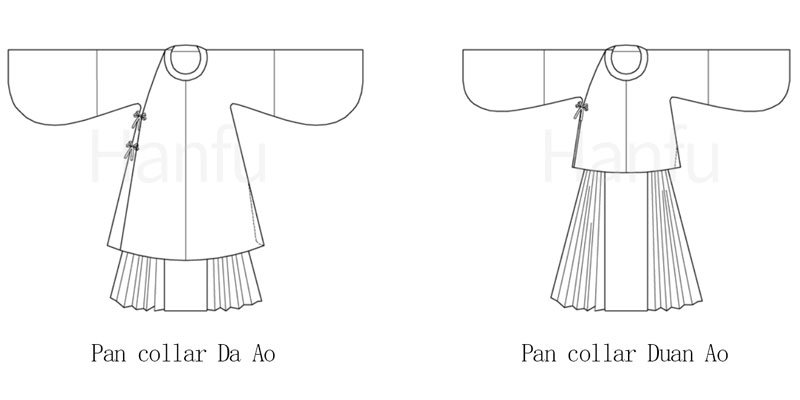

The Pan collar Da Ao (盘扣大袄) can be used as a woman’s formal dress, usually with Pipa sleeves or wide sleeves, the length of the Da Ao is similar to that of the Da Ao described in the section 2, with slits on both sides and a matching Ma Mian Qun or pleated skirt underneath. The beautifully crafted red Pan collar with a Pan collar can be used as a woman’s wedding dress, with a red skirt underneath.

The Pan collar Duan Ao (盘扣短袄) here is similar in shape and size to the Aoqun in section 2, with slits on both sides and the same sleeves, except that the collar styles are different.

Size chart

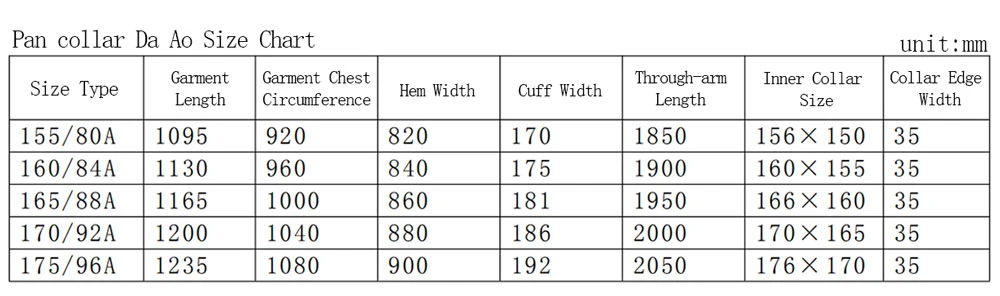

Pan collar Da Ao (盘扣大袄)

1. 155/80A

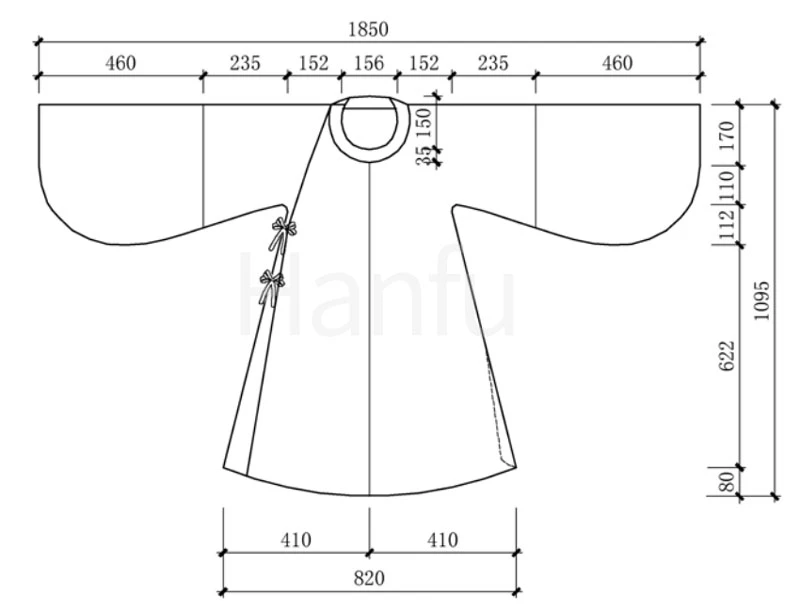

155/80A Pan collar Da Ao Appearance Drawings

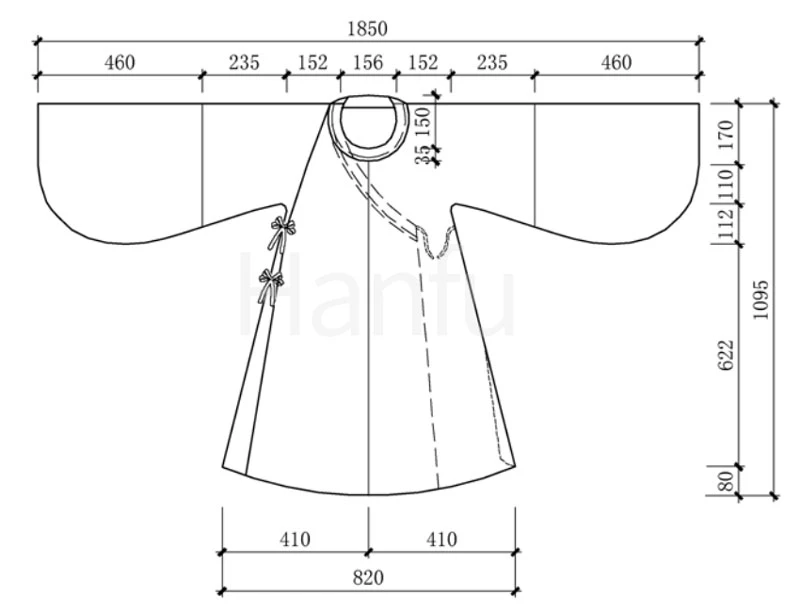

155/80A Pan collar Da Ao Perspective Drawings

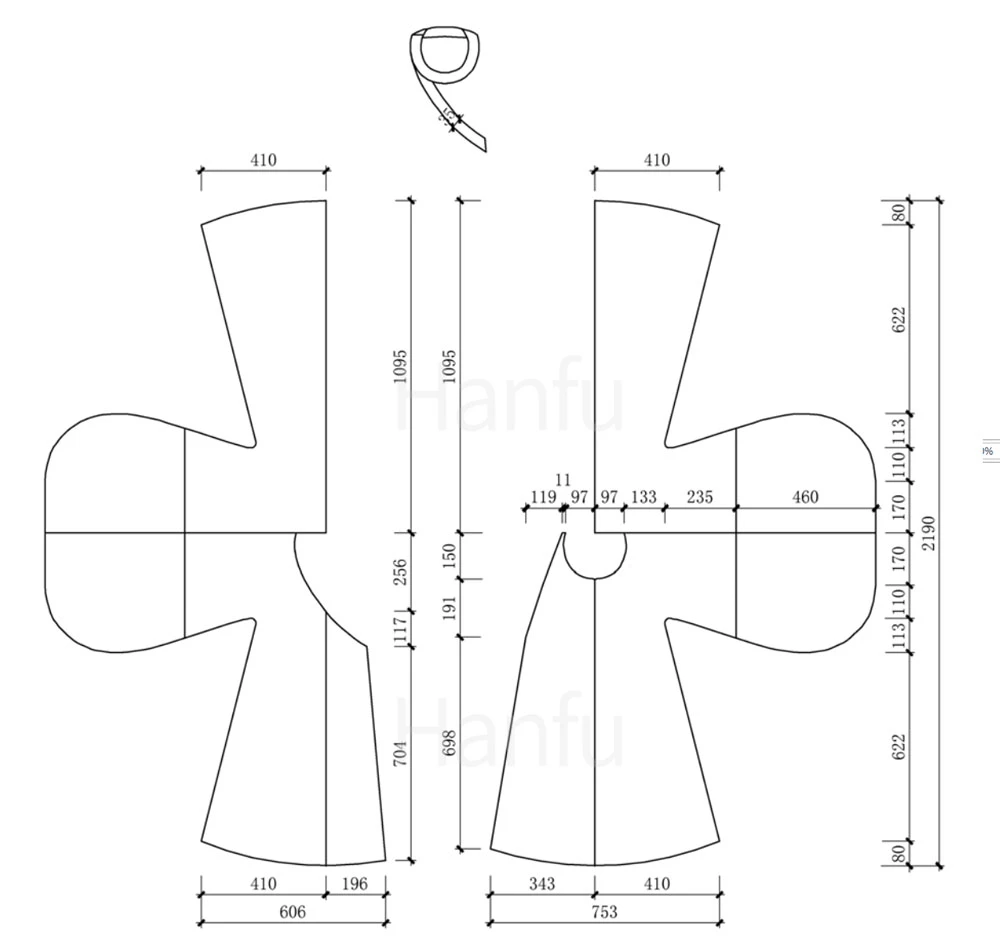

155/80A Pan collar Da Ao Expansion Drawings

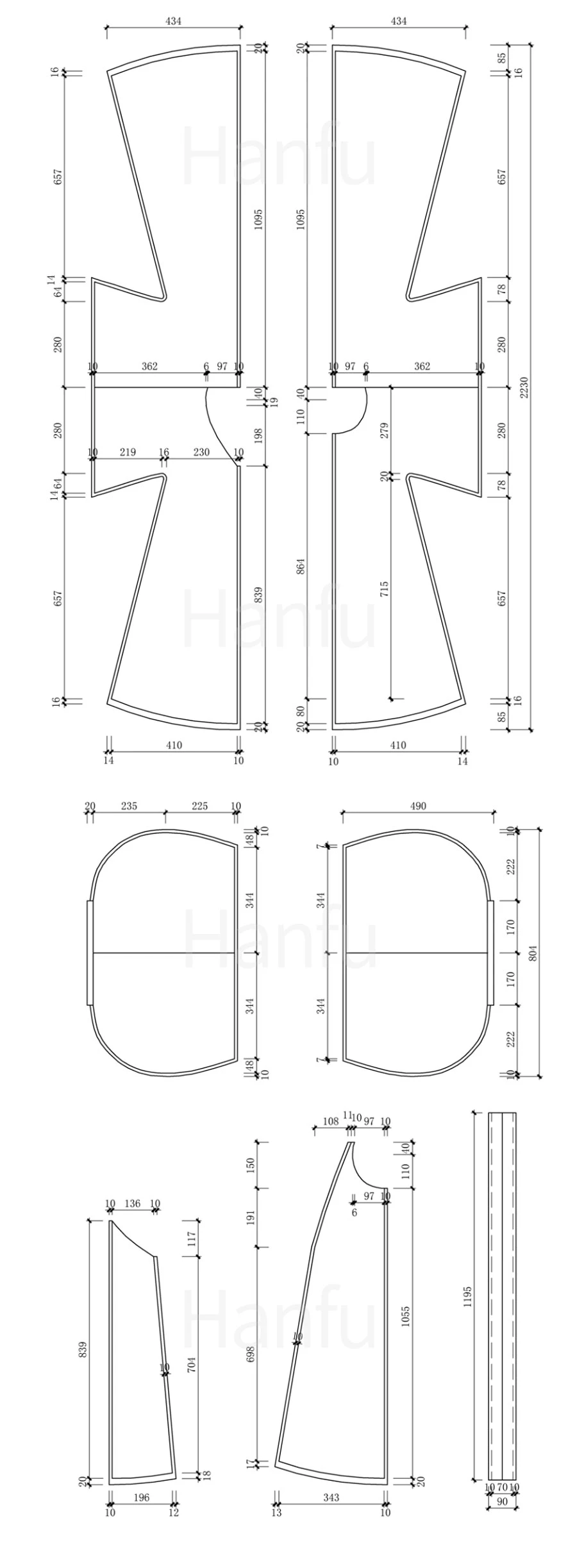

155/80A Pan collar Da Ao Detail Size Drawings

2. 160/84A

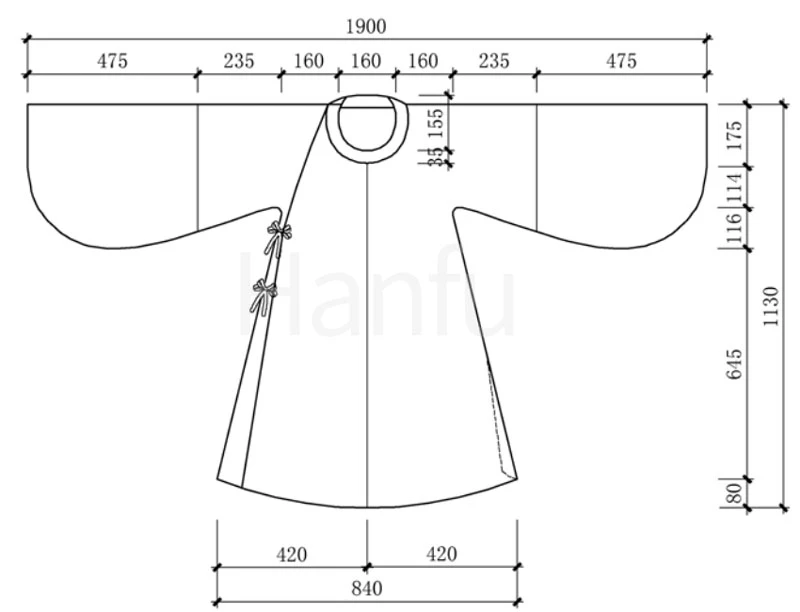

160/84A Pan collar Da Ao Appearance Drawings

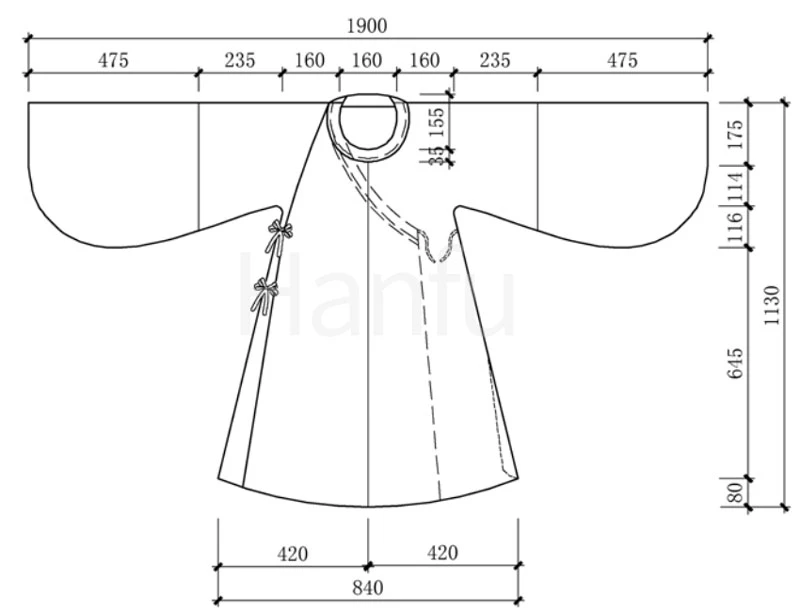

160/84A Pan collar Da Ao Perspective Drawings

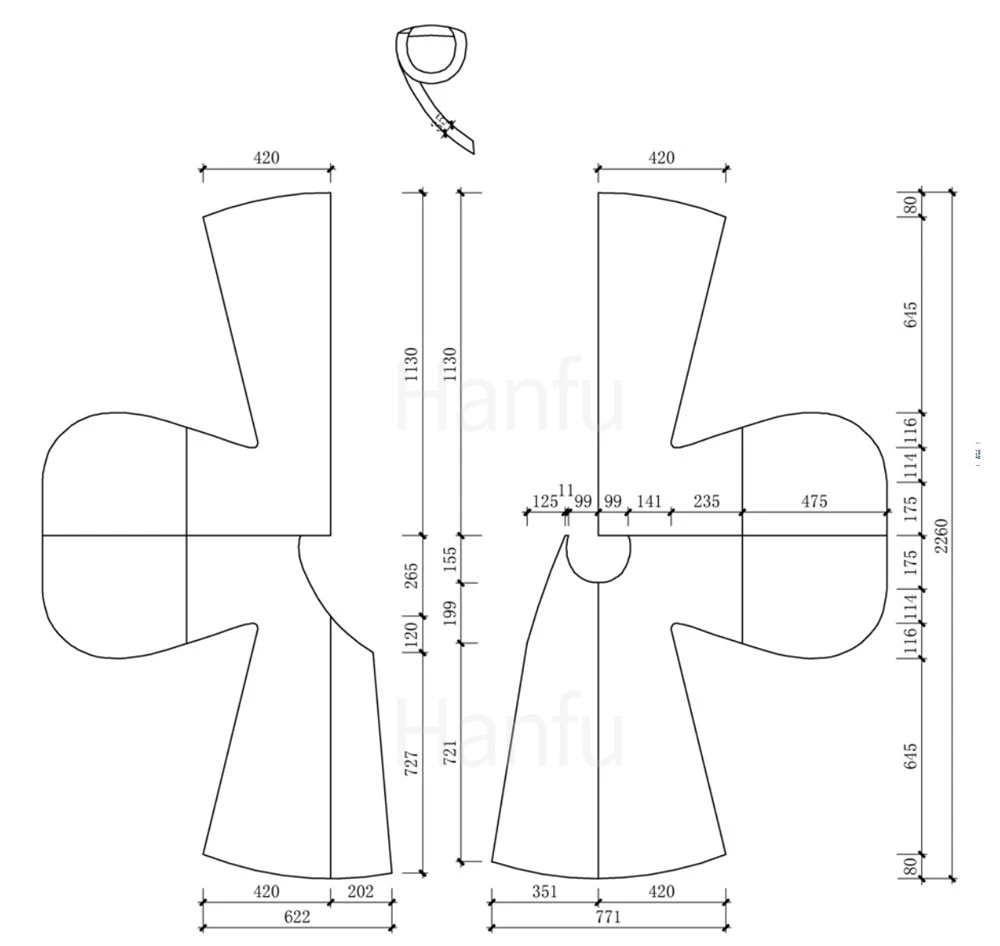

160/84A Pan collar Da Ao Expansion Drawings

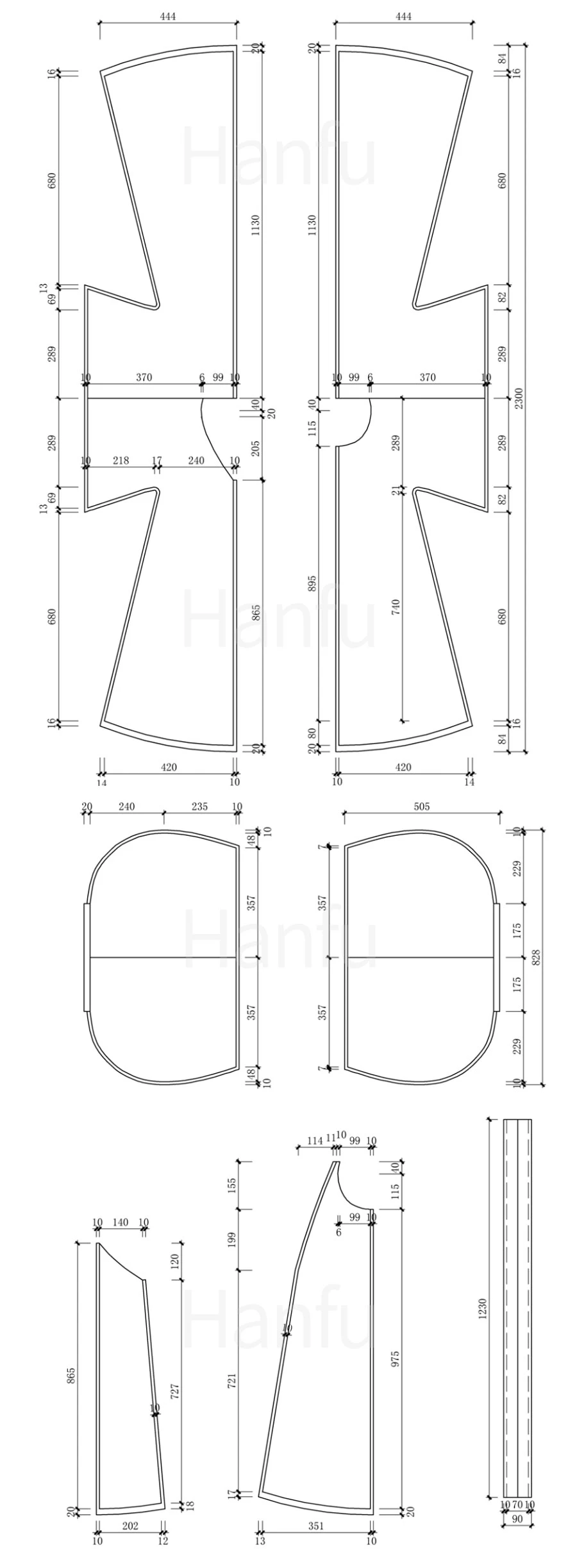

160/84A Pan collar Da Ao Detail Size Drawings

3. 165/88A

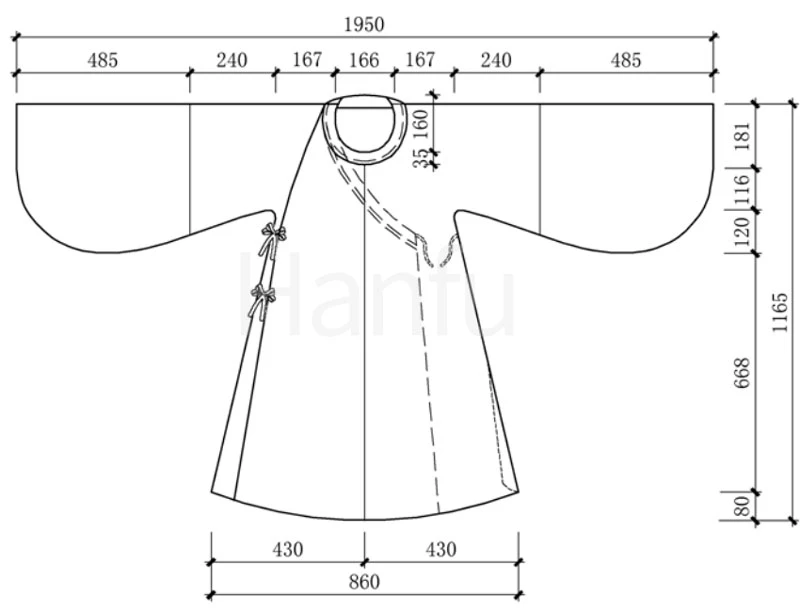

165/88A Pan collar Da Ao Appearance Drawings

165/88A Pan collar Da Ao Perspective Drawings

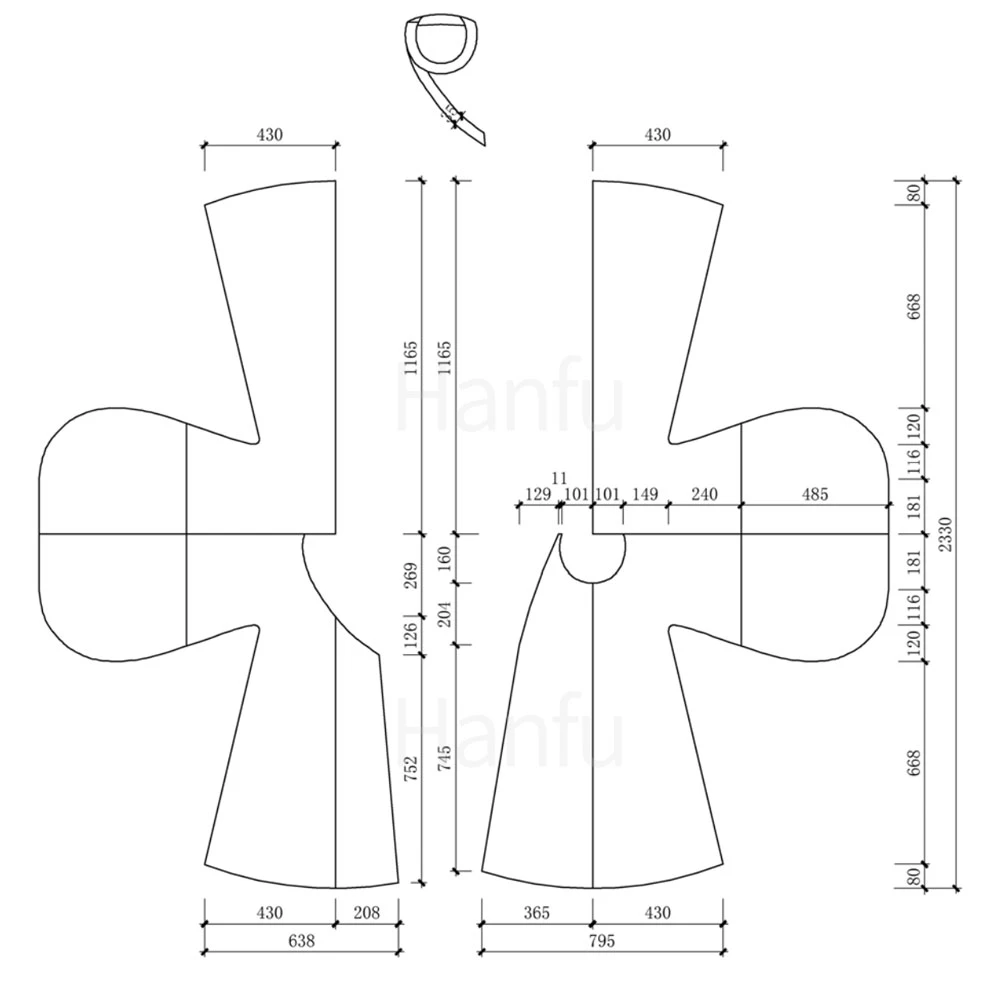

165/88A Pan collar Da Ao Expansion Drawings

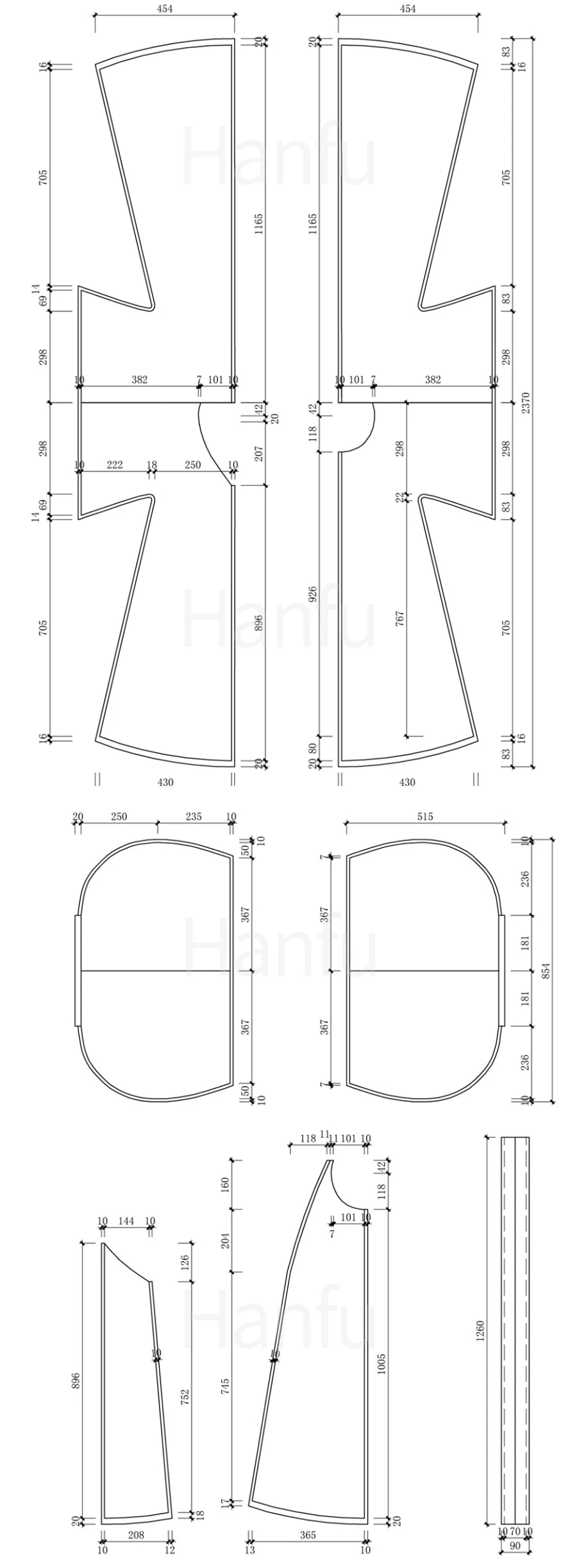

165/88A Pan collar Da Ao Detail Size Drawings

4. 170/92A

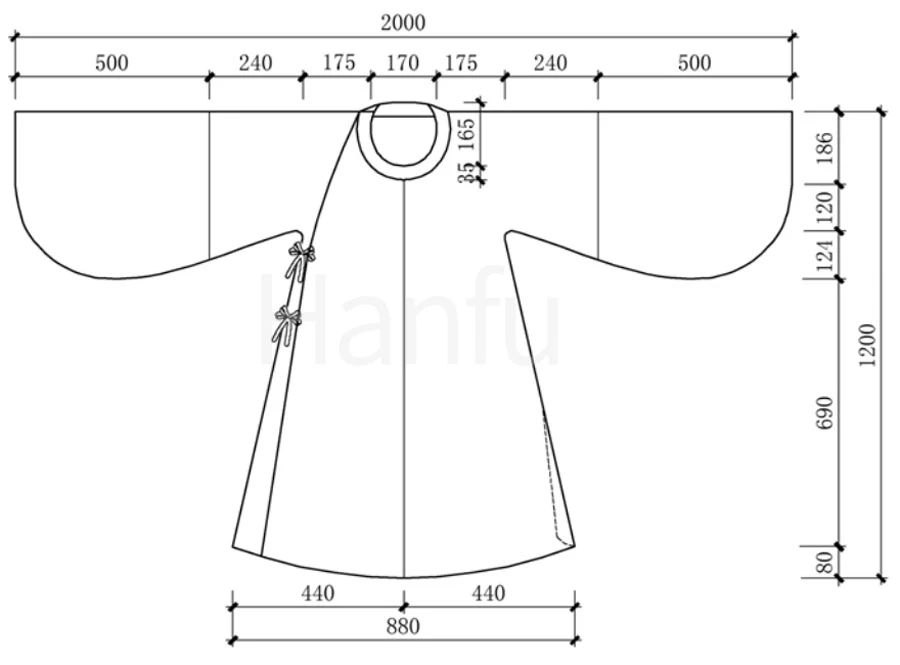

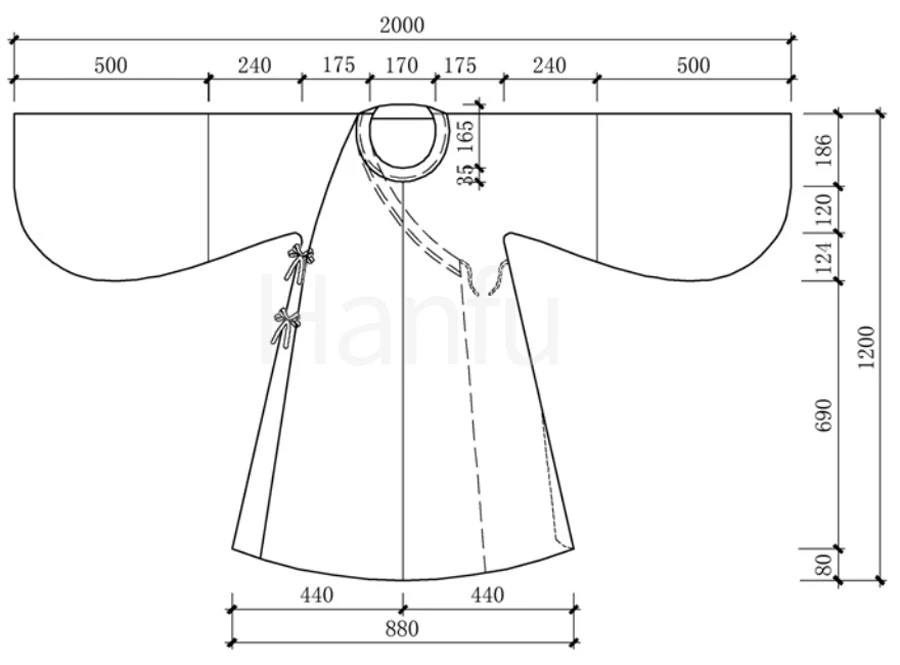

170/92A Pan collar Da Ao Appearance Drawings

170/92A Pan collar Da Ao Perspective Drawings

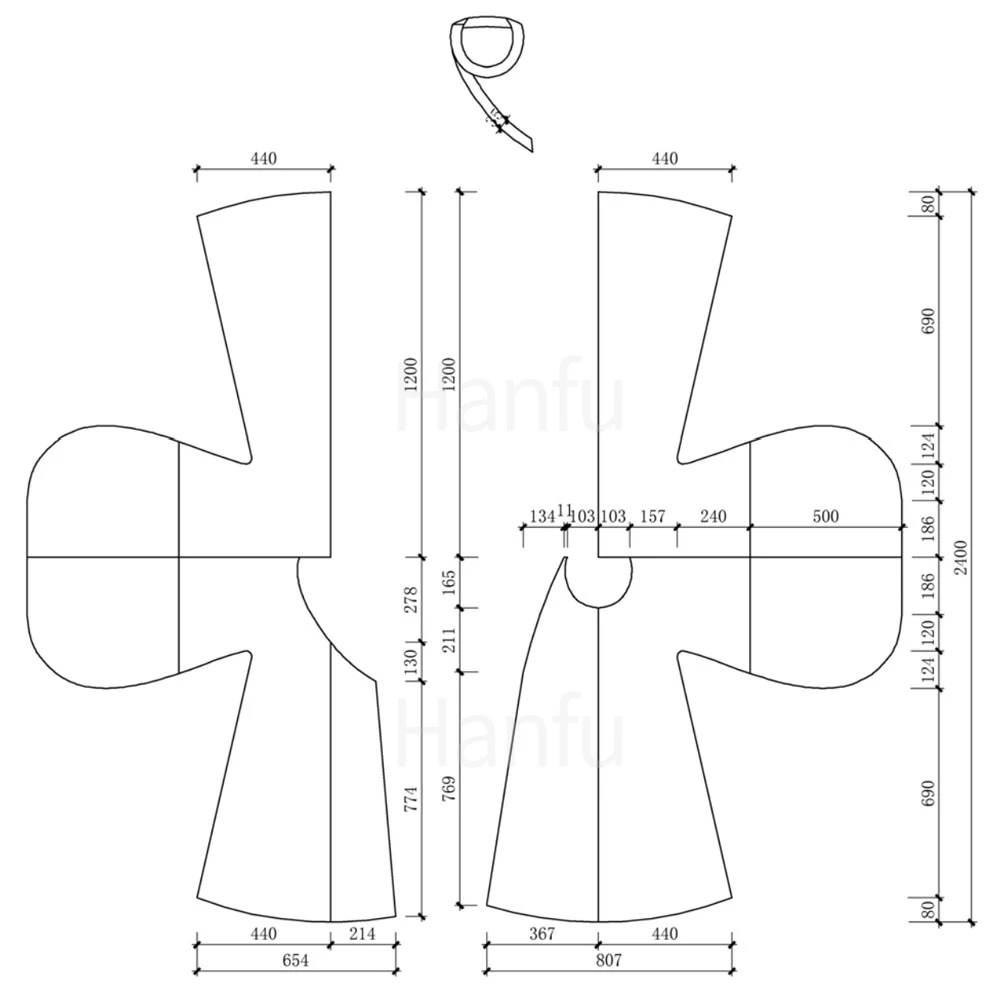

170/92A Pan collar Da Ao Expansion Drawings

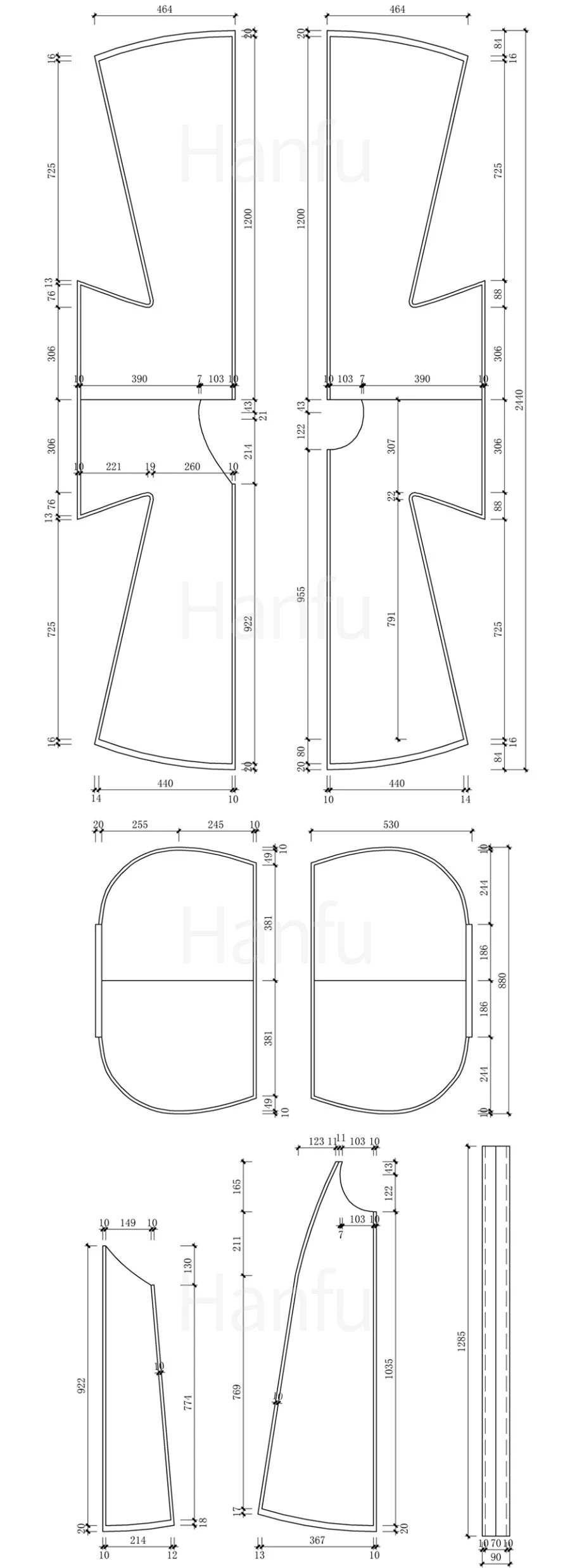

170/92A Pan collar Da Ao Detail Size Drawings

5. 175/96A

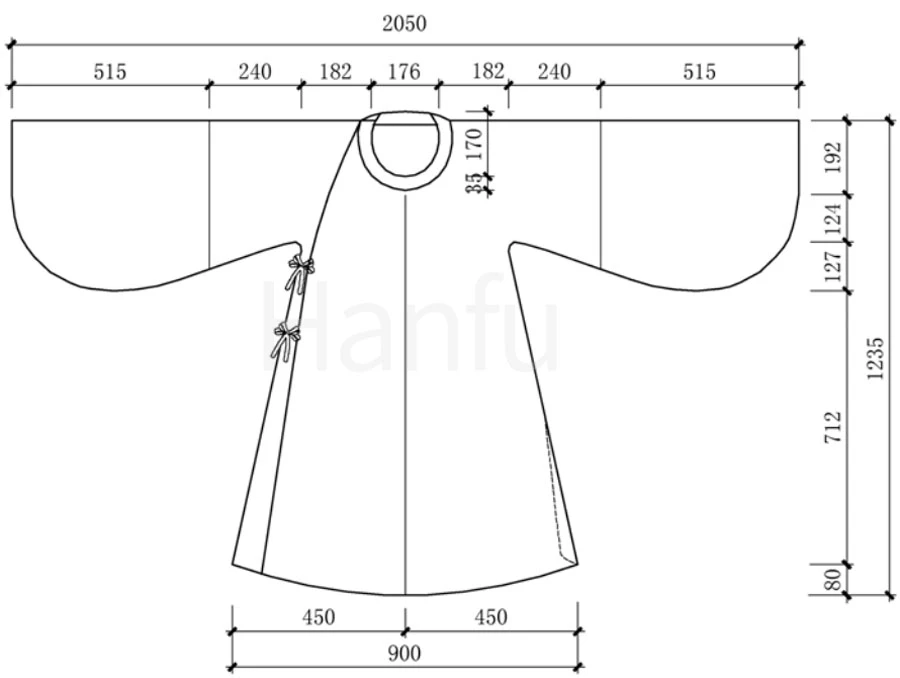

175/96A Pan collar Da Ao Appearance Drawings

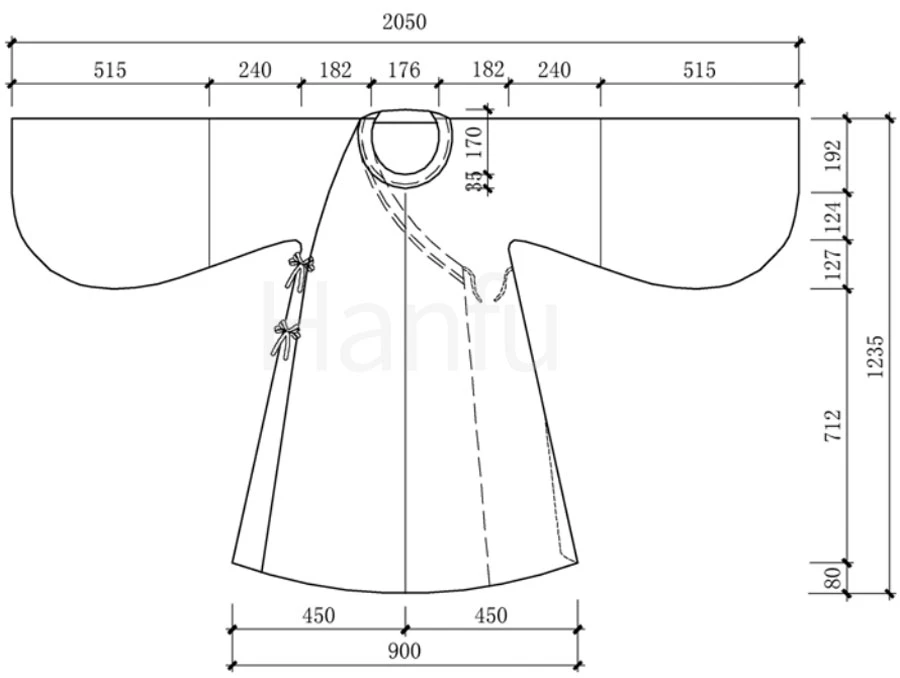

175/96A Pan collar Da Ao Perspective Drawings

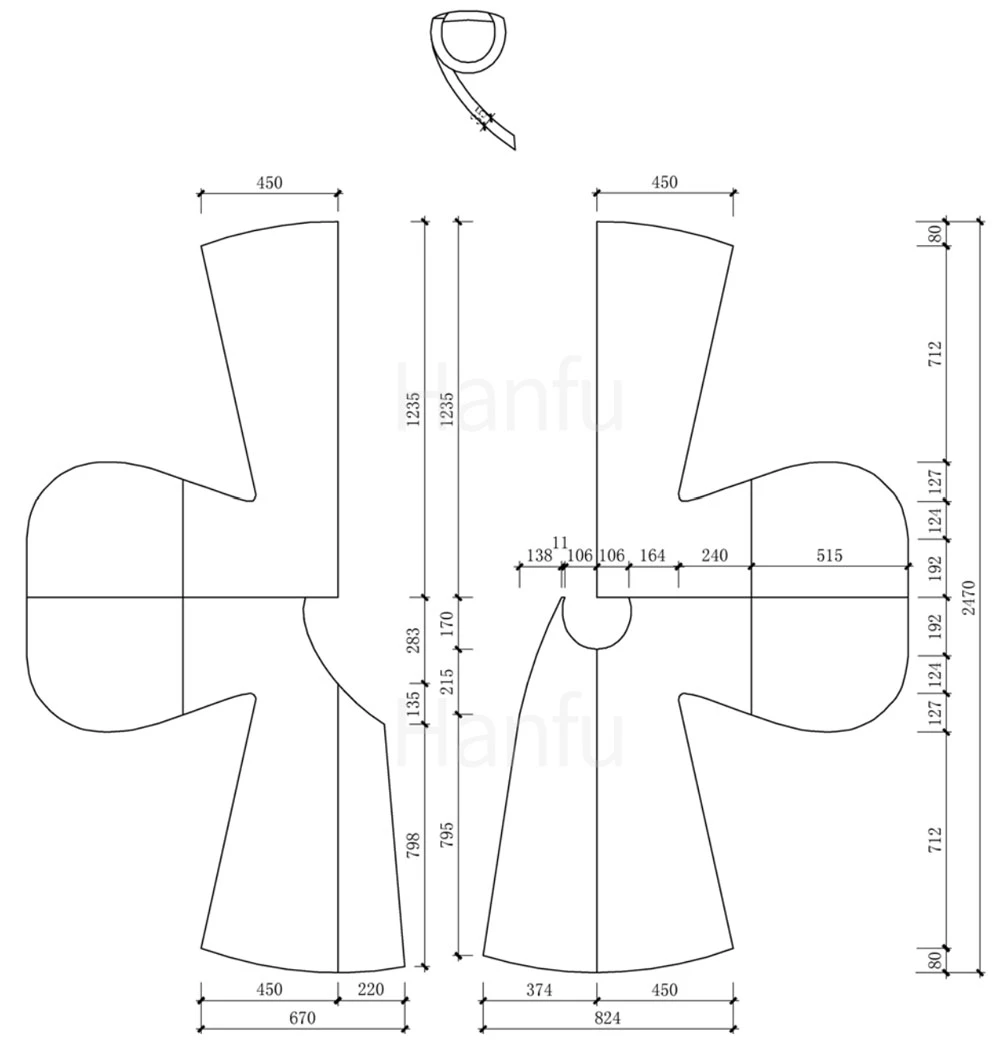

175/96A Pan collar Da Ao Expansion Drawings

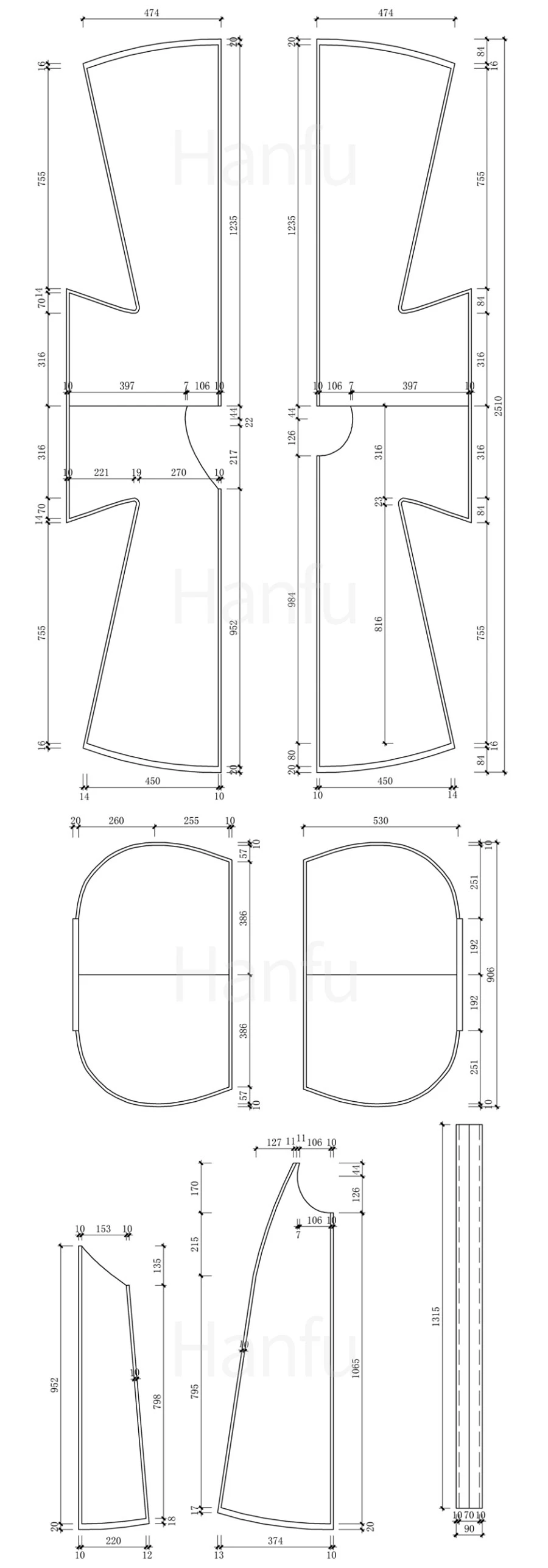

175/96A Pan collar Da Ao Detail Size Drawings

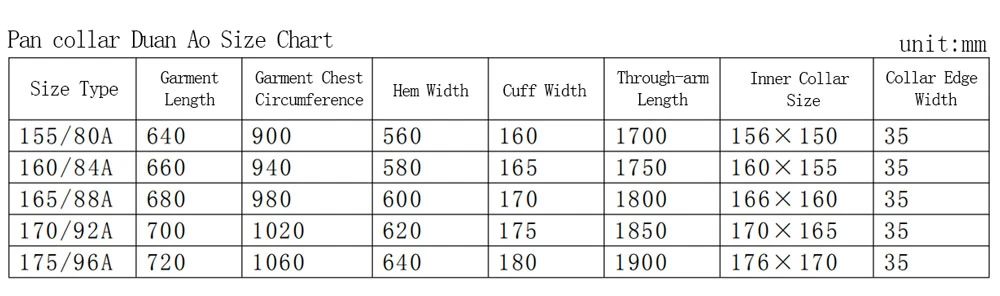

Pan collar Duan Ao (盘扣短袄)

1. 155/80A

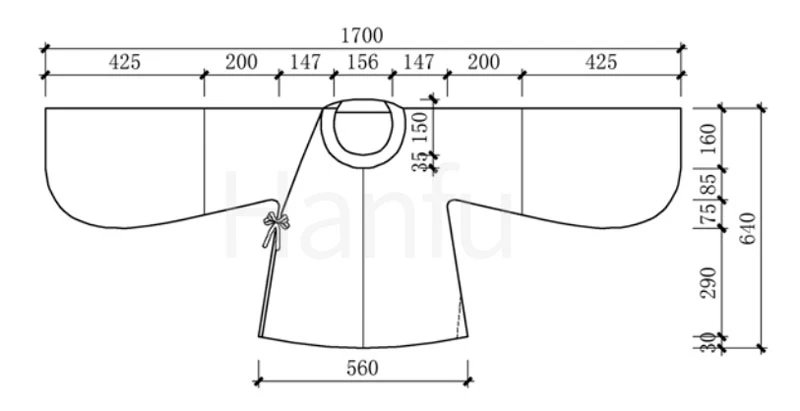

155/80A Pan collar Duan Ao Appearance Drawings

155/80A Pan collar Duan Ao Perspective Drawings

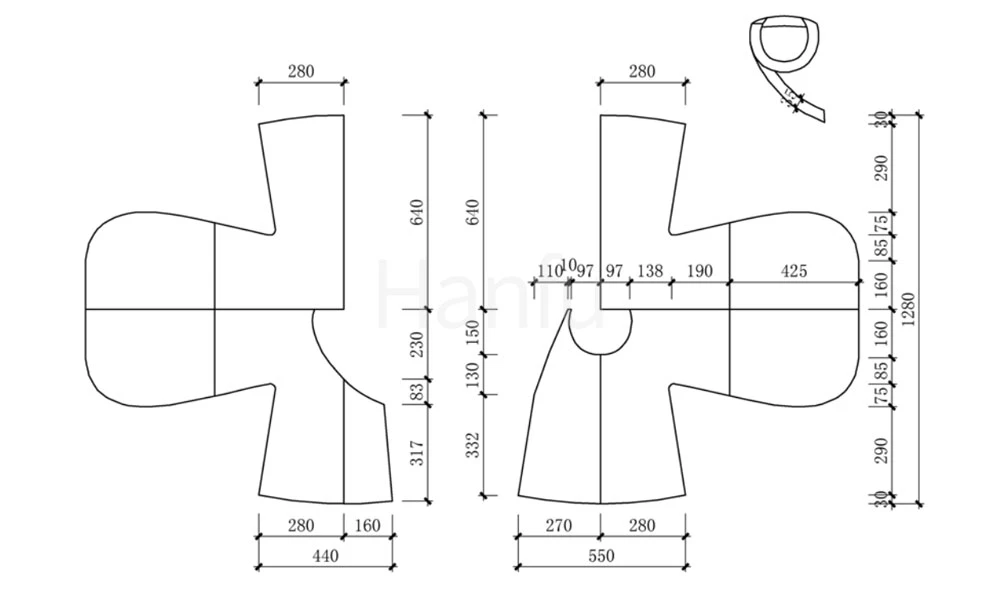

155/80A Pan collar Duan Ao Expansion Drawings

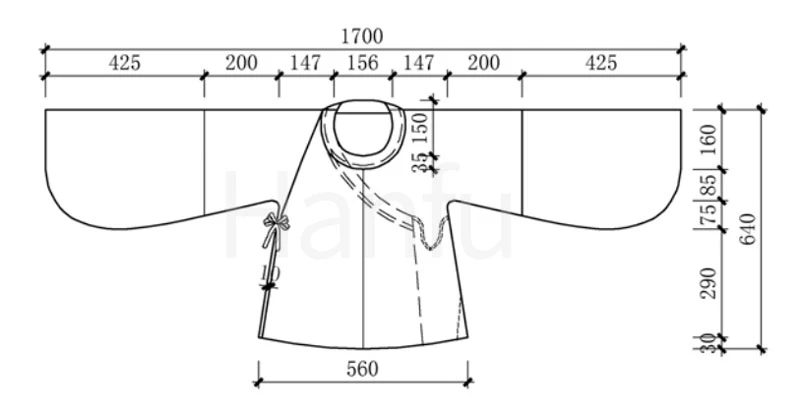

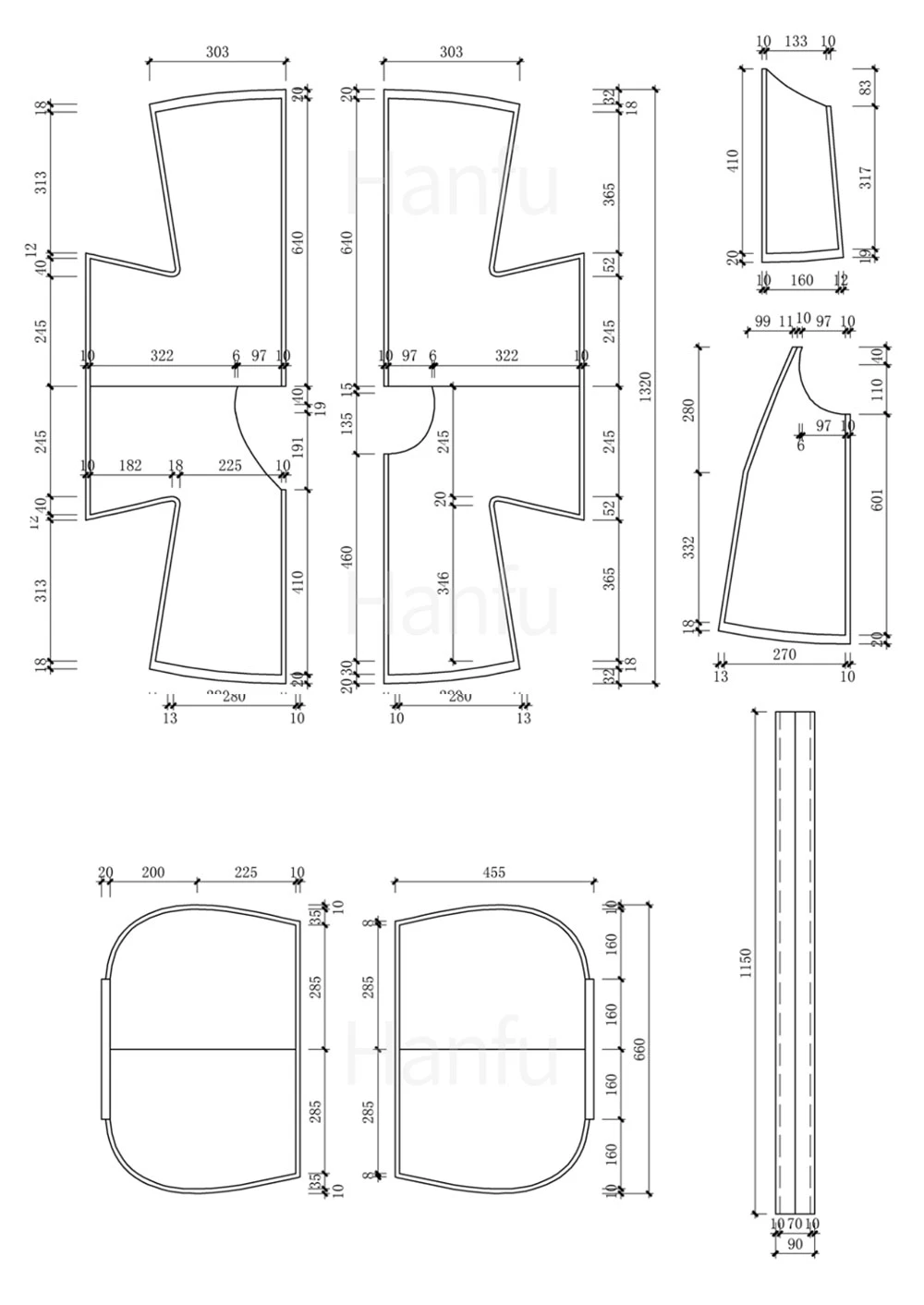

155/80A Pan collar Duan Ao Detail Size Drawings

2. 160/84A

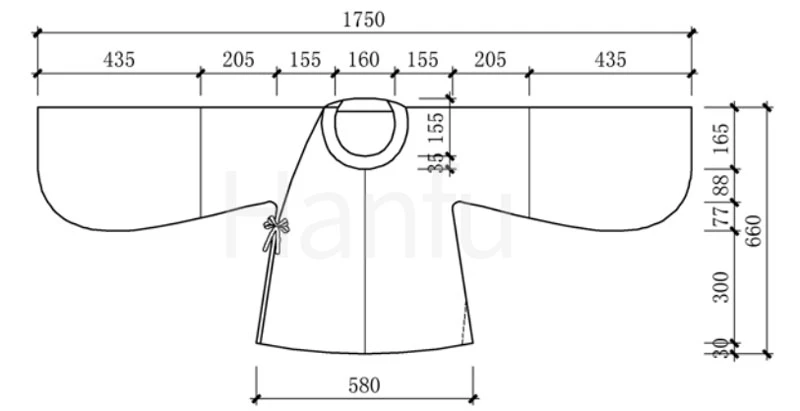

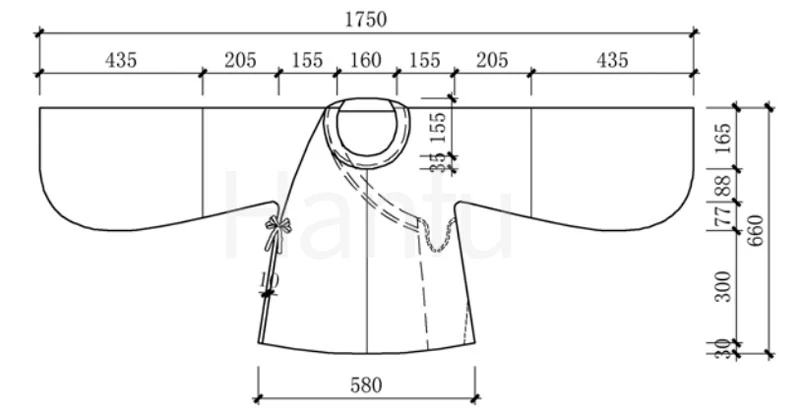

160/84A Pan collar Duan Ao Appearance Drawings

160/84A Pan collar Duan Ao Perspective Drawings

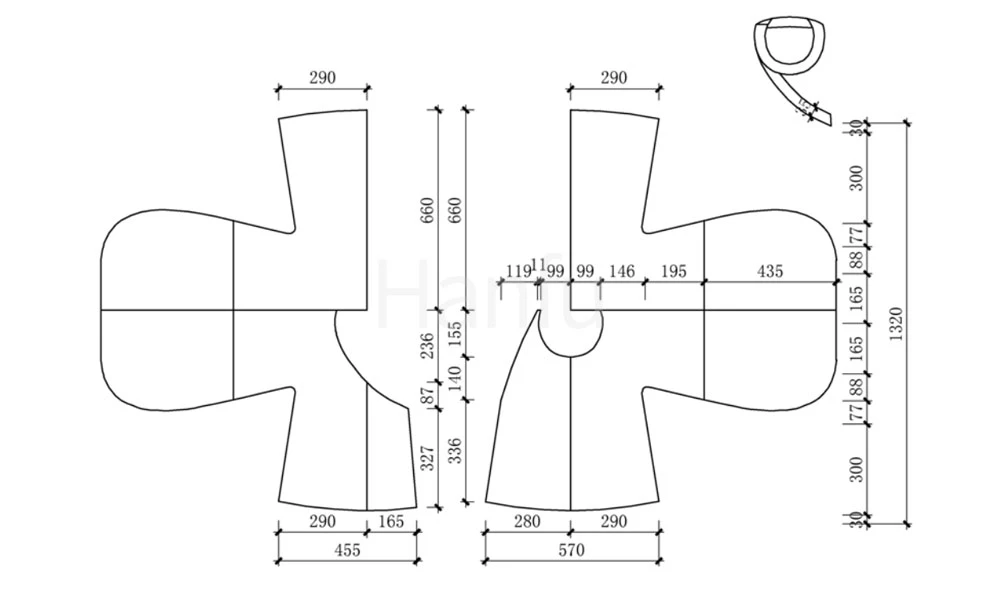

160/84A Pan collar Duan Ao Expansion Drawings

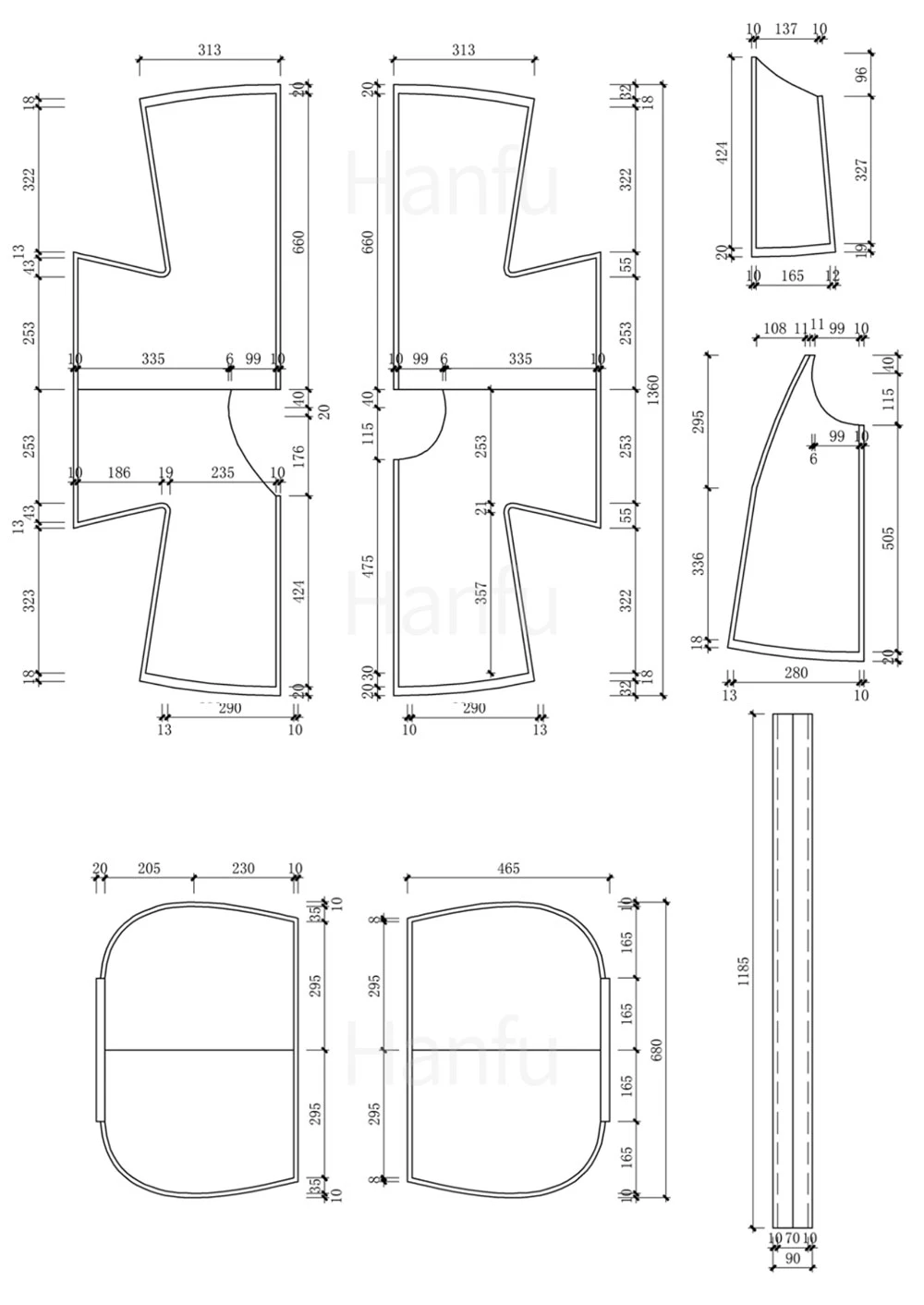

160/84A Pan collar Duan Ao Detail Size Drawings

3. 165/88A

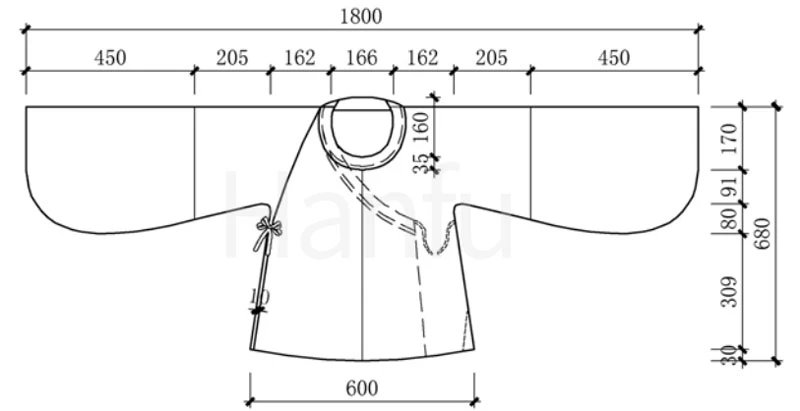

165/88A Pan collar Duan Ao Appearance Drawings

165/88A Pan collar Duan Ao Perspective Drawings

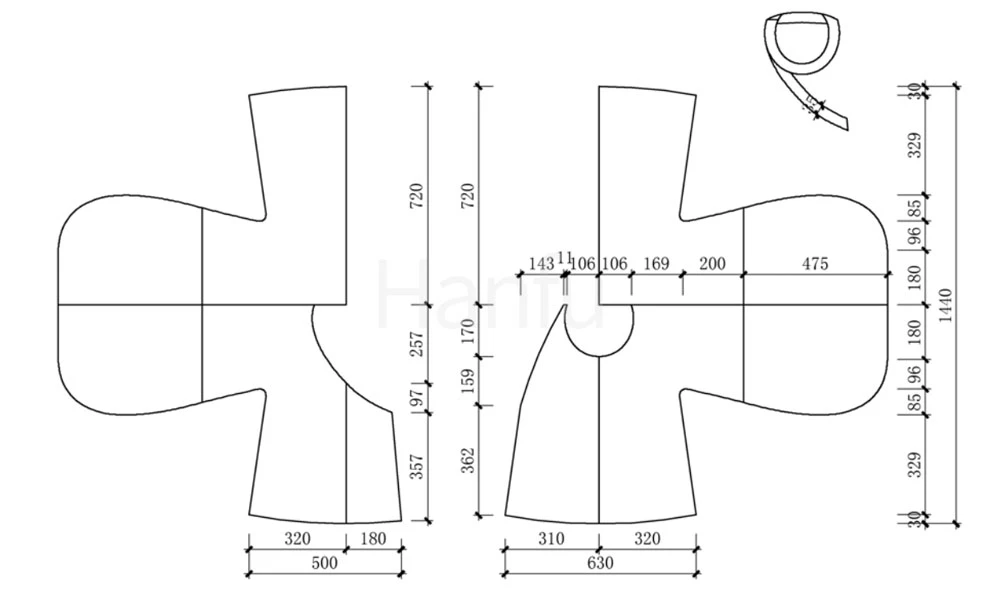

165/88A Pan collar Duan Ao Expansion Drawings

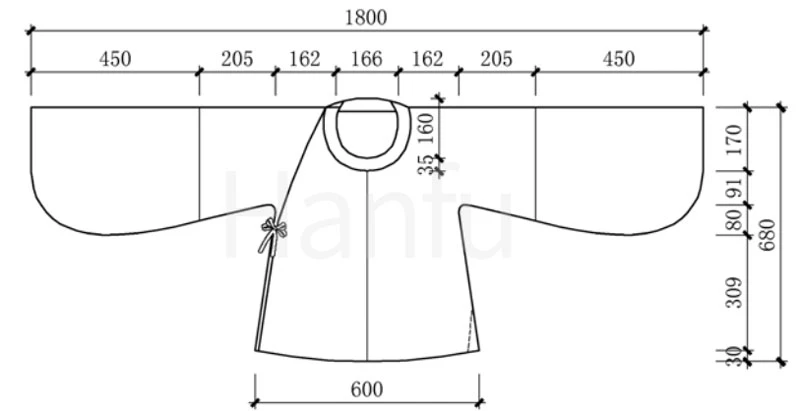

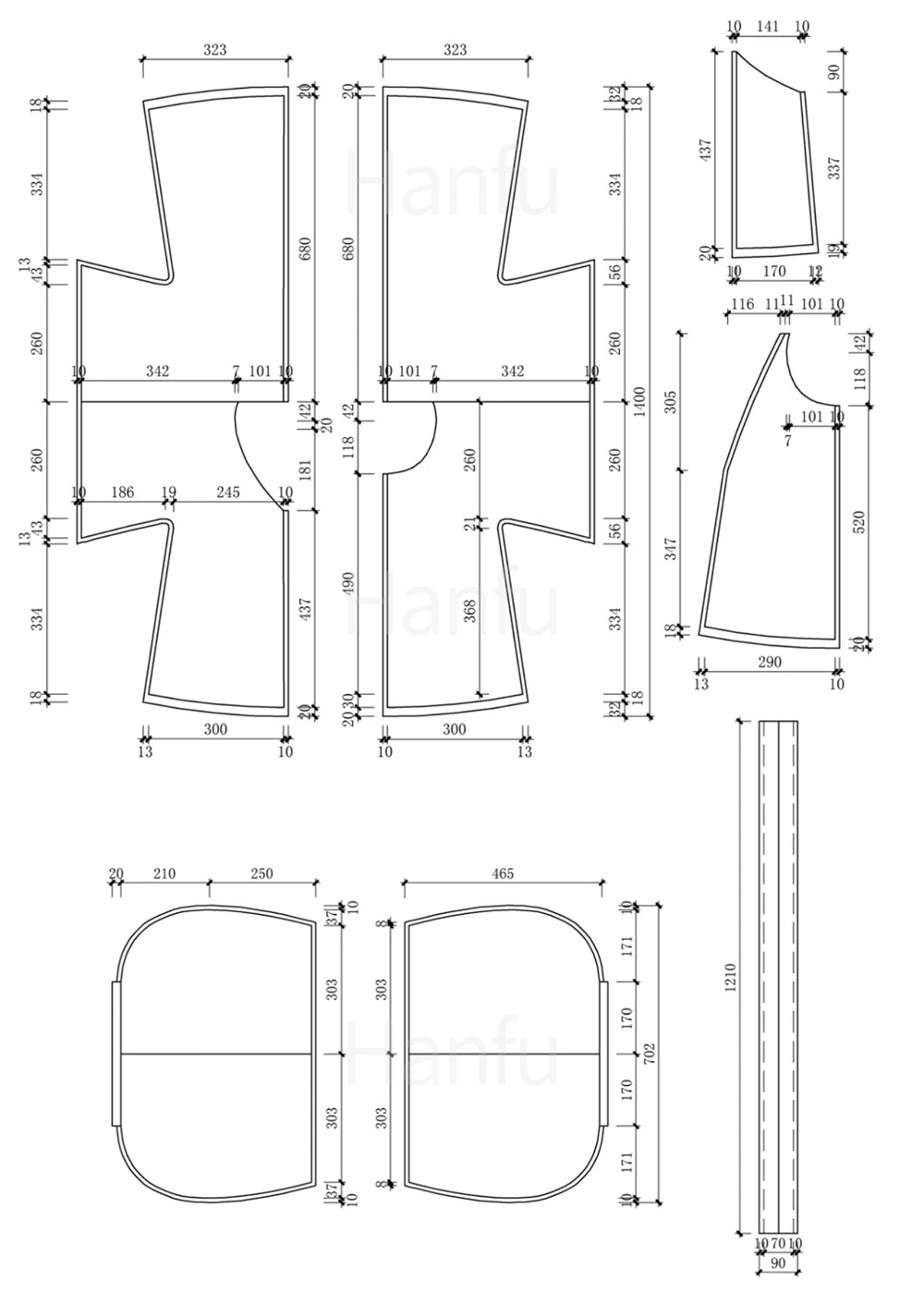

165/88A Pan collar Duan Ao Detail Size Drawings

4. 170/92A

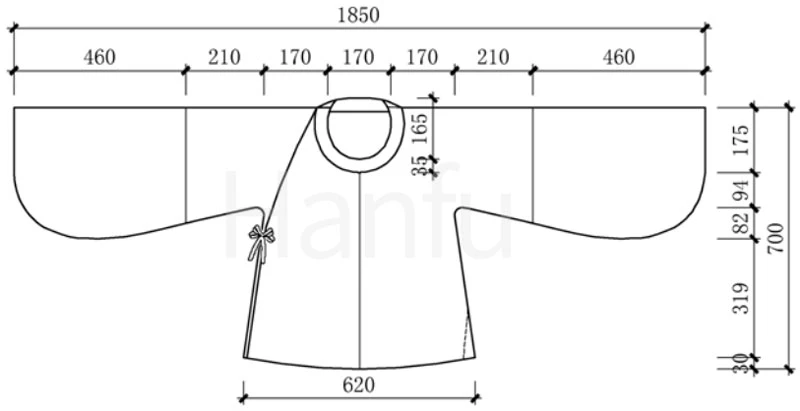

170/92A Pan collar Duan Ao Appearance Drawings

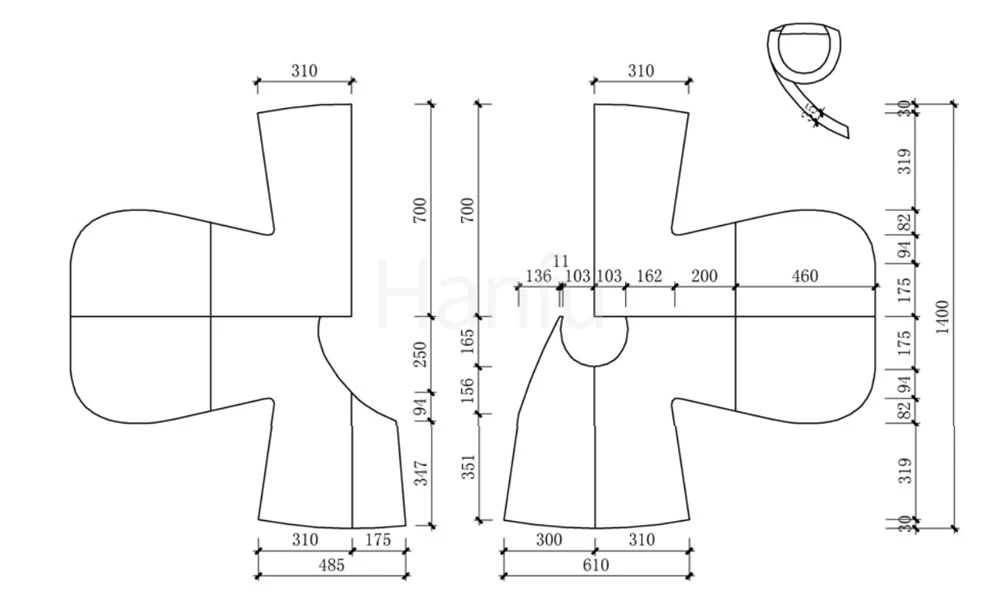

170/92A Pan collar Duan Ao Perspective Drawings

170/92A Pan collar Duan Ao Expansion Drawings

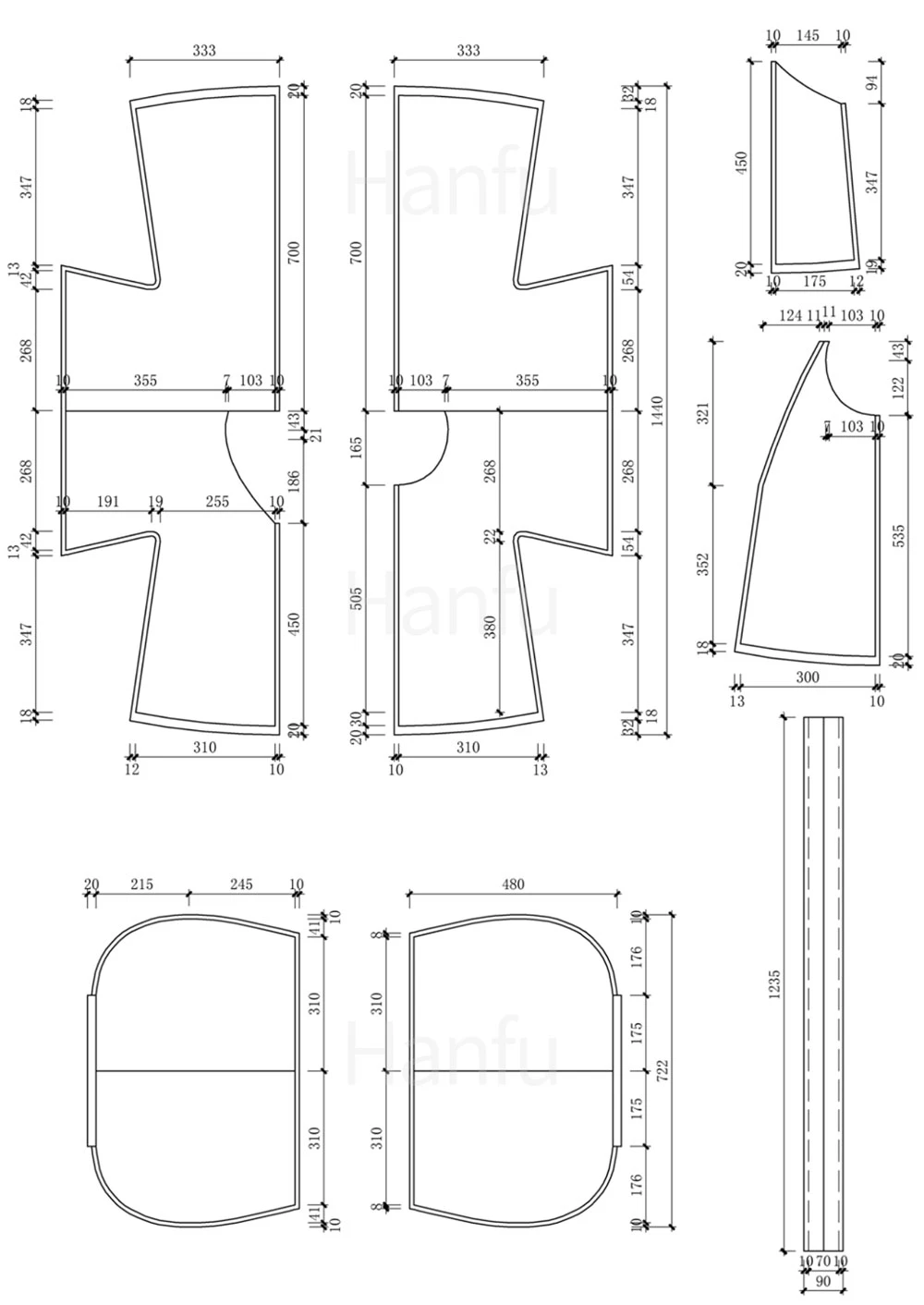

170/92A Pan collar Duan Ao Detail Size Drawings

5. 175/96A

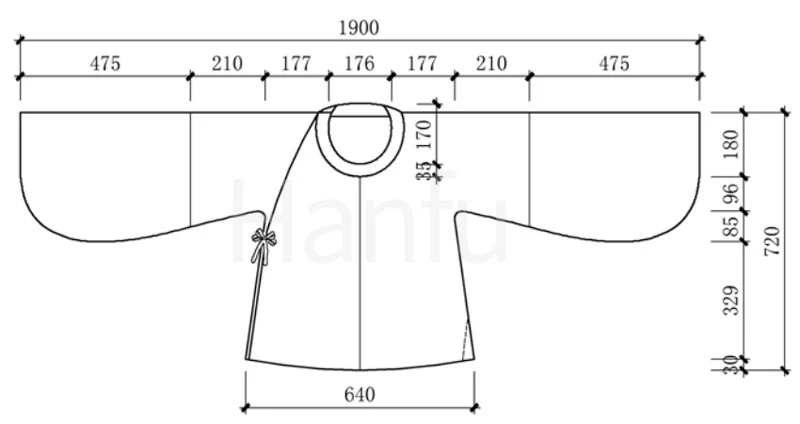

175/96A Pan collar Duan Ao Appearance Drawings

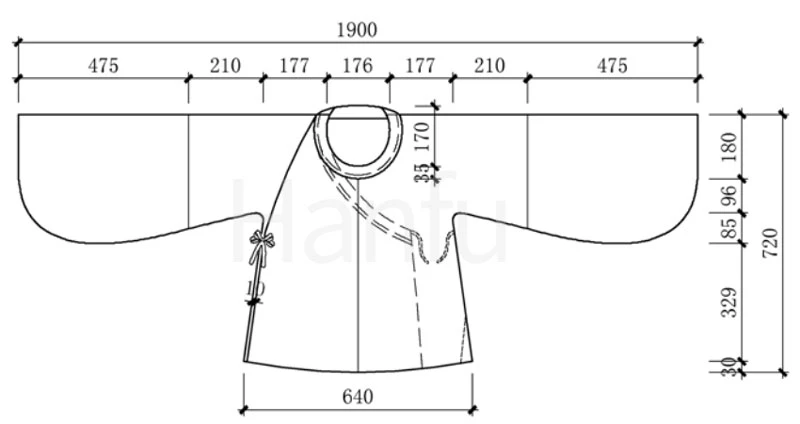

175/96A Pan collar Duan Ao Perspective Drawings

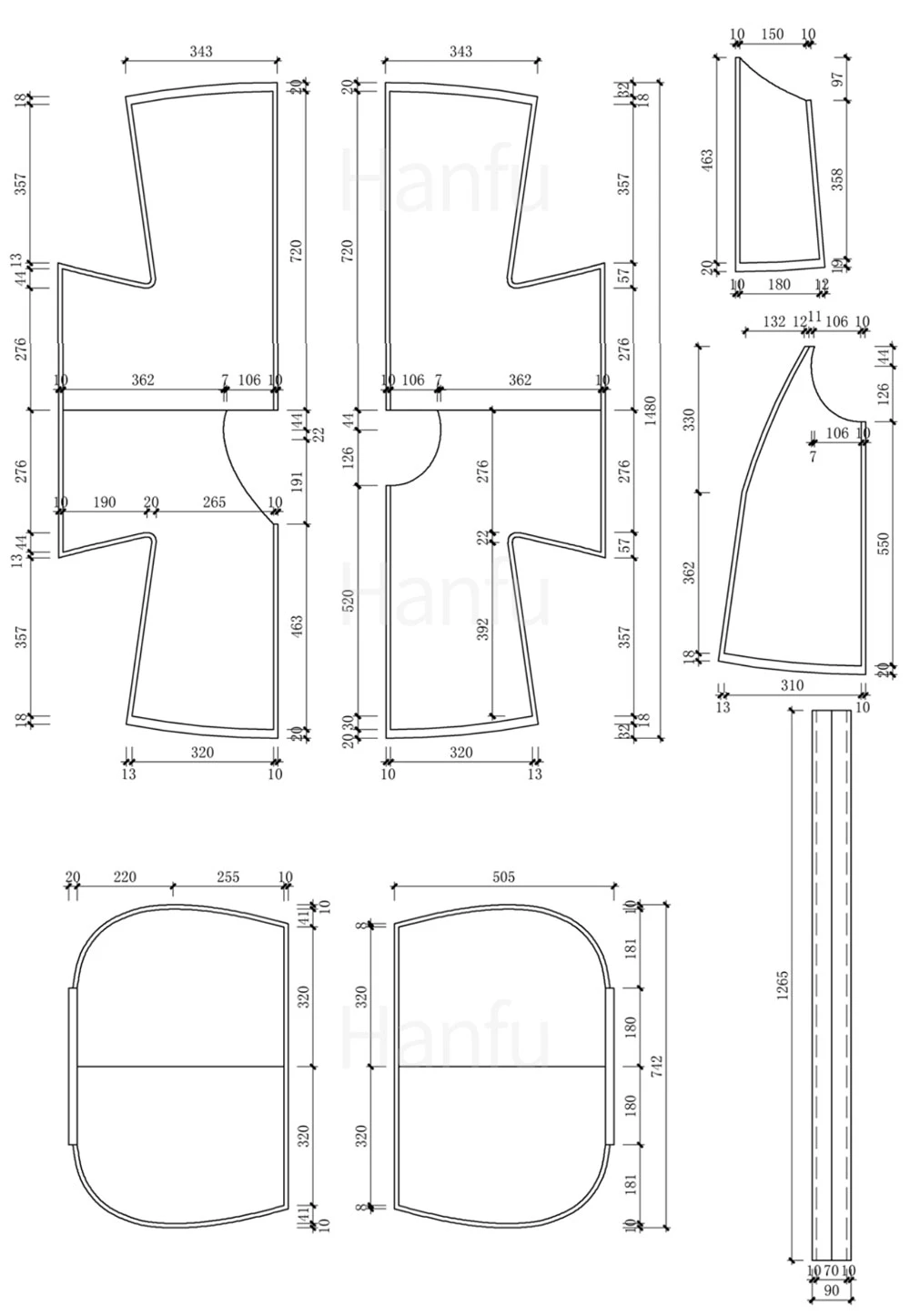

175/96A Pan collar Duan Ao Expansion Drawings

175/96A Pan collar Duan Ao Detail Size Drawings
